Model YF-504 Series, Trademark A-TEX (Single Feed, DISCOUNTS!!)

Brand A-TEX 504 Series Single Cylinder Hosiery Machine

Description

1. The nature of the products:

single or double elastic, full/half terry, minimum 2 colors on the heel and toe, mesh,invisible socks, many kinds of heels(Y heel, big heel and small heel etc.), left & right socks, full elastic socks, 3-D socks, socks with 180 degree reversed toe

Maximum 5-color +1 color basic in one single cycle

Maximum 4 colors 2 colors basic in one single cycle

Total possibility of production of 15-18 color pattern

2. Technical characteristics

8-ps yarn finger in the main system

1-2 yarn finger for the rubber

12-15 yarn finger for pattern

Total 22-25 yarn finger

Detailed product specification

Model	Diameter of cylinder (")	Functions	Needle Number	Number of needles (N)	Max. Speed (RPM)		Power (kW)
Model	Diameter of cylinder (")	Functions	Needle Number	Number of needles (N)	Plain	Terry	Main Motor	Blower	Controller
YF-504P	3.5”	Plain	7175/7170	84-220	280-300 *		1	1.1	0.70
YF-504PM	3.5”	Plain/Terry		84-156	280-300 *	220-280 *	1	1.1	0.70
YF-504U	3.75”	Plain/Terry		84-200	280-300 *	220-280 *	1	1.1	0.70
YF-504T	4	Plain/Terry	7175/7170	84-220	280-300 *	220-280	1	1.1	0.7
JD-504U	4.5”	Thick Terry	7110 (7112)	56-108		220-280 *	1	1.3	0.70
JD-504U	5”	Thick Terry	7110 (7112)	42-72		220-280 *	1	1.3	0.70
Net (kg): 270 gross (kg): 300 Working size (w * d * w) sm: 150120240 (including spool) Packing Size (W * D * W) CM: 8575165 Air qty/one machine: 0.07 ~ 0.1 m & sup3;/min Air pressure: 0.65MPa(6.5Kgf, 6.5Bar) Rated Power: 2.9 ~ 3.3KW(440V = 6.6A ~ 7.5A, 380V = 7.63A ~ 8.68A, 220V = 13.2A ~ 15A) Actual Power: 1.2 ~ 1.5KW(440V = 2.72 ~ 3.41A, 380V = 3.15 ~ 3.95A, 220V = 5.45 ~ 6.81A)

Detailed description of products

넳 넲

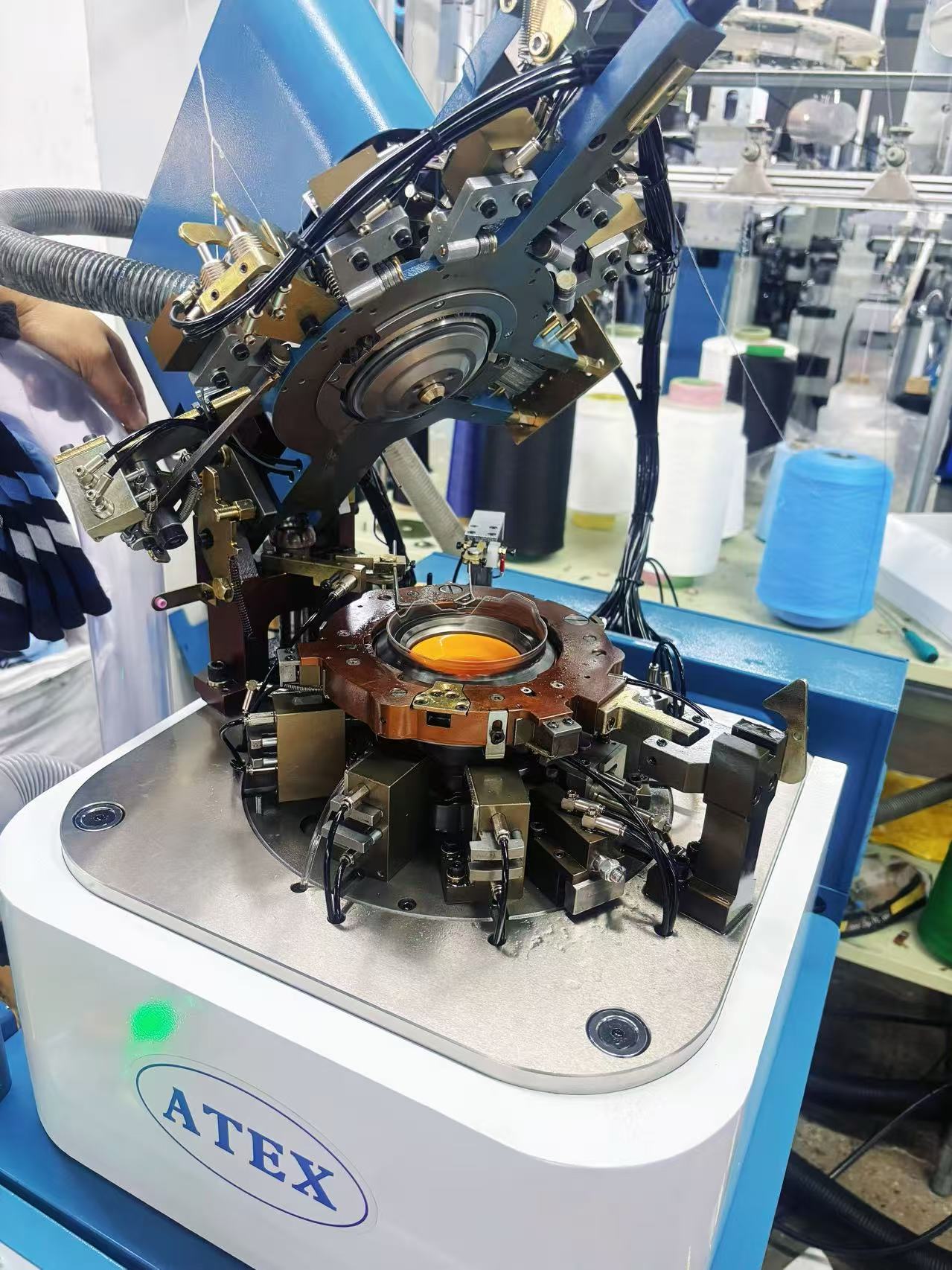

-Fully computer single cylinder hosiery machine

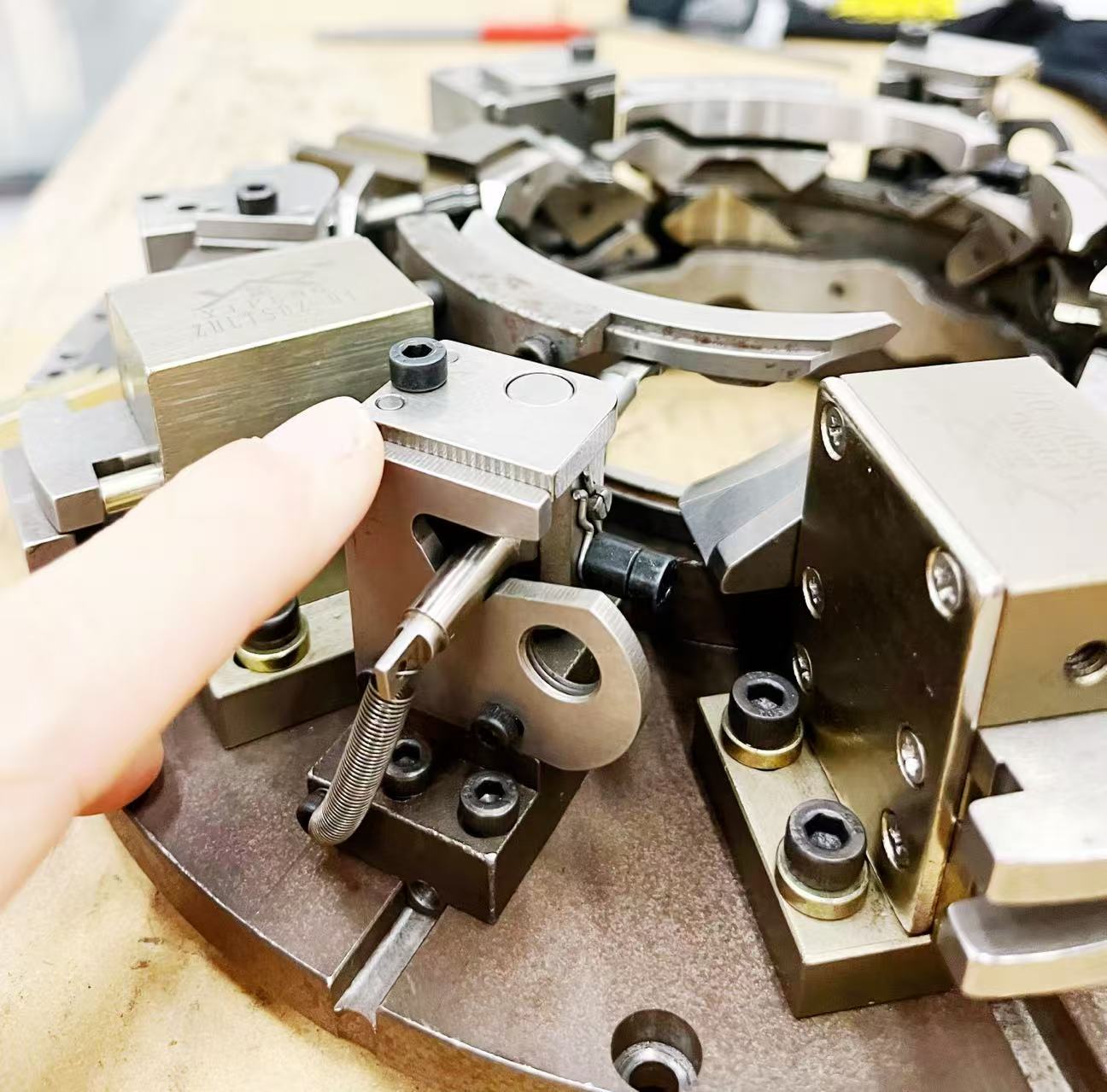

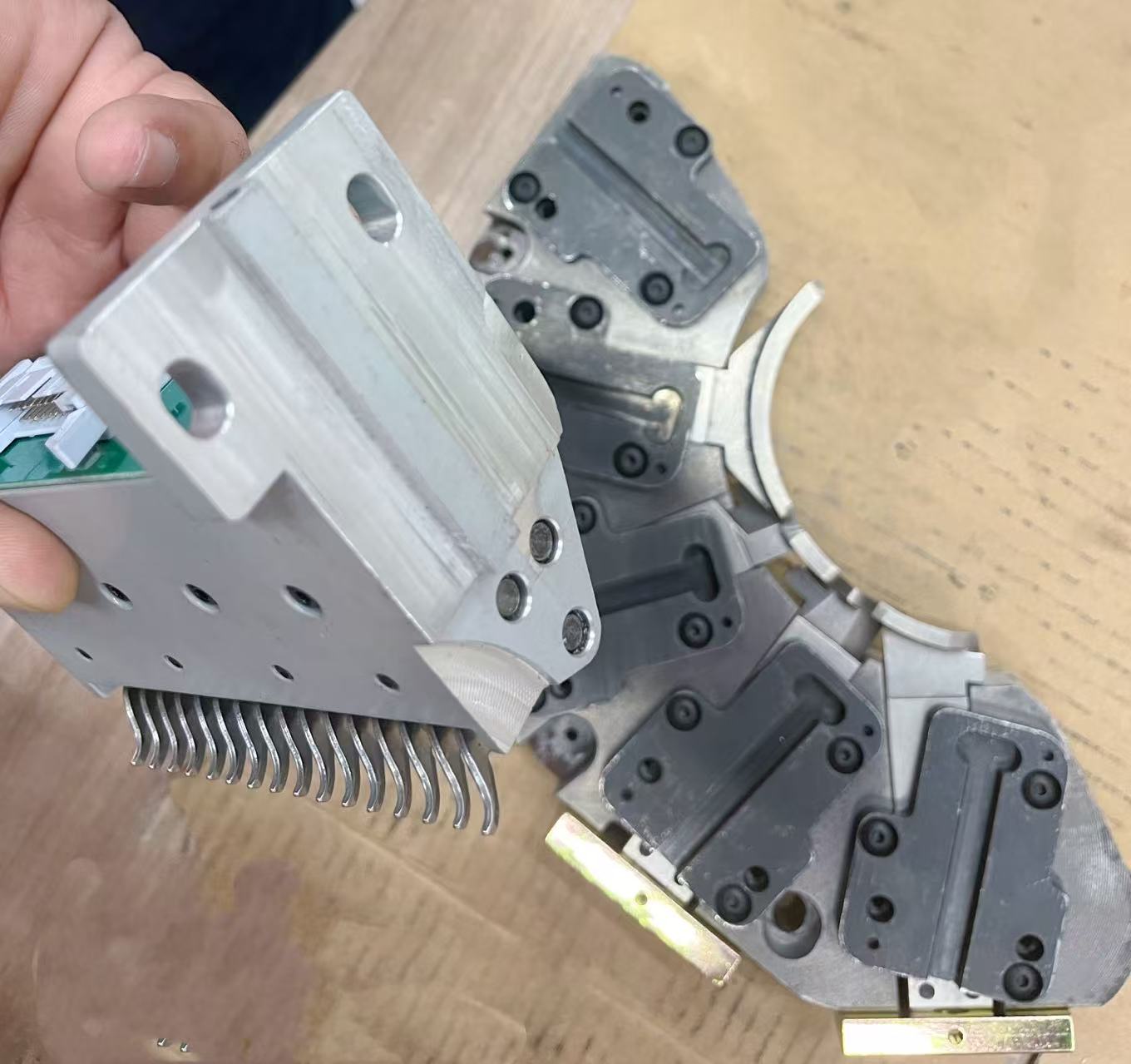

-6 magnetic selectors(16fingers): 1+5

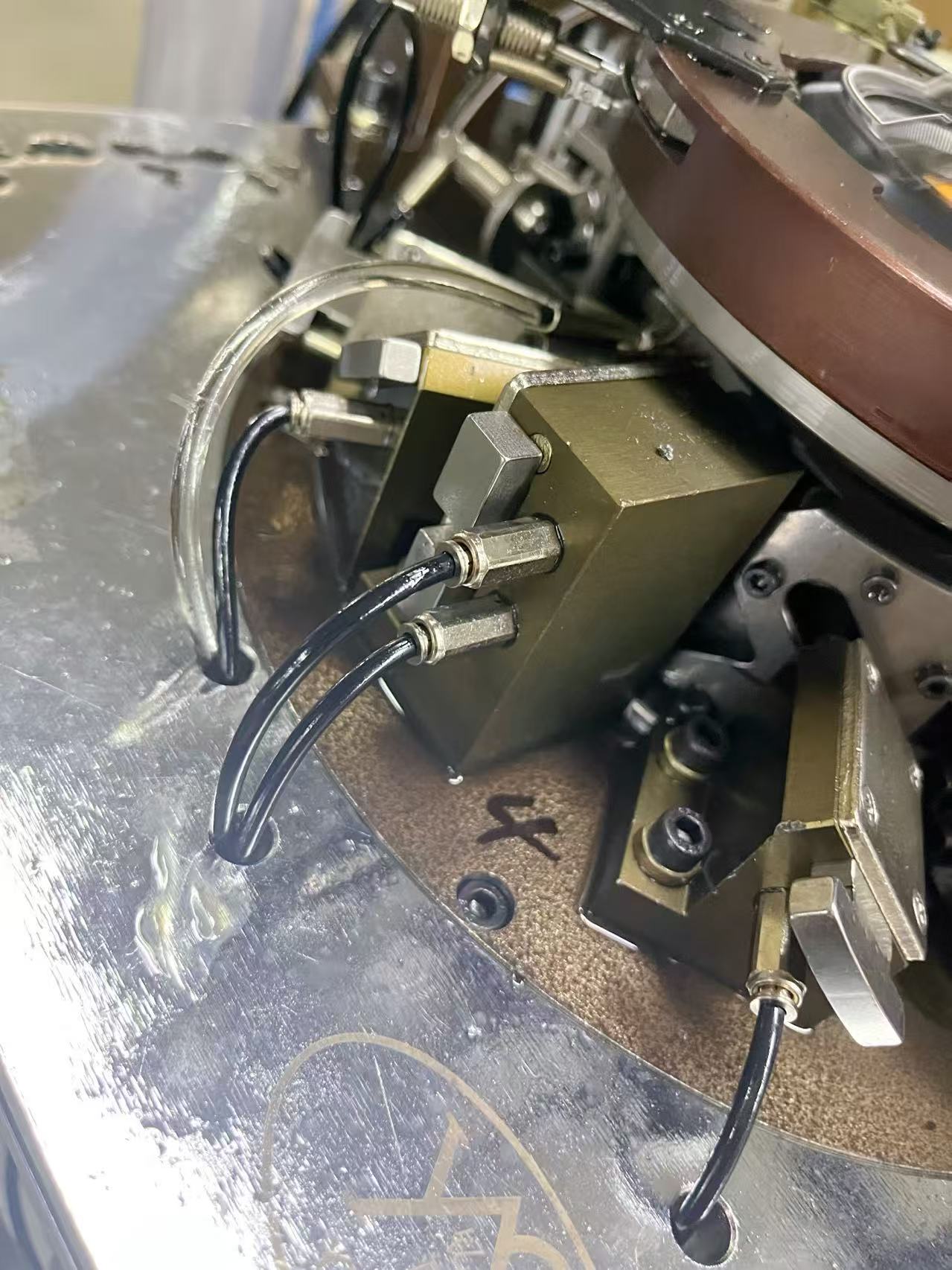

-4 pickers(2 for lifting needles and 2 for lowering needles).
