Printing Mac with PVC

Model GW-100TRS(One color)

Model GW-200TRS(Two colors)

Single color printing machine for silicone coating, screen printing in textile industry.

Speed can be up to 2000 pcs/hour.

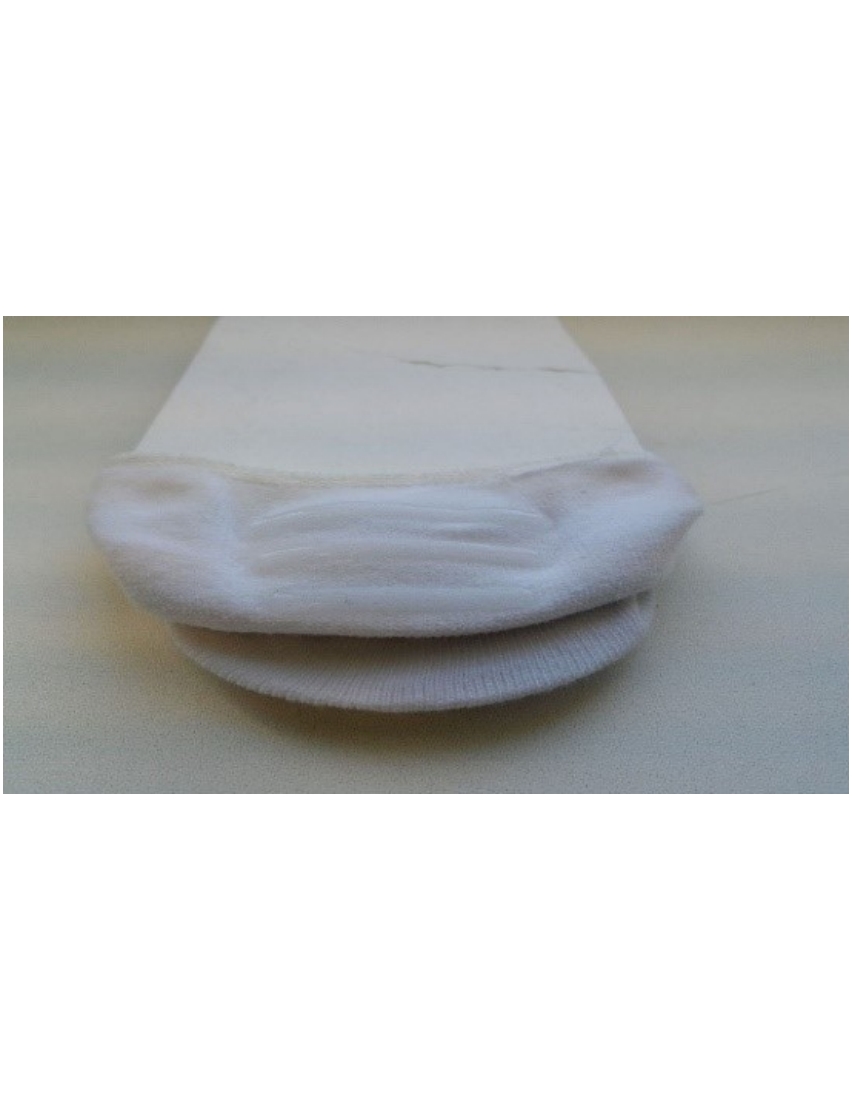

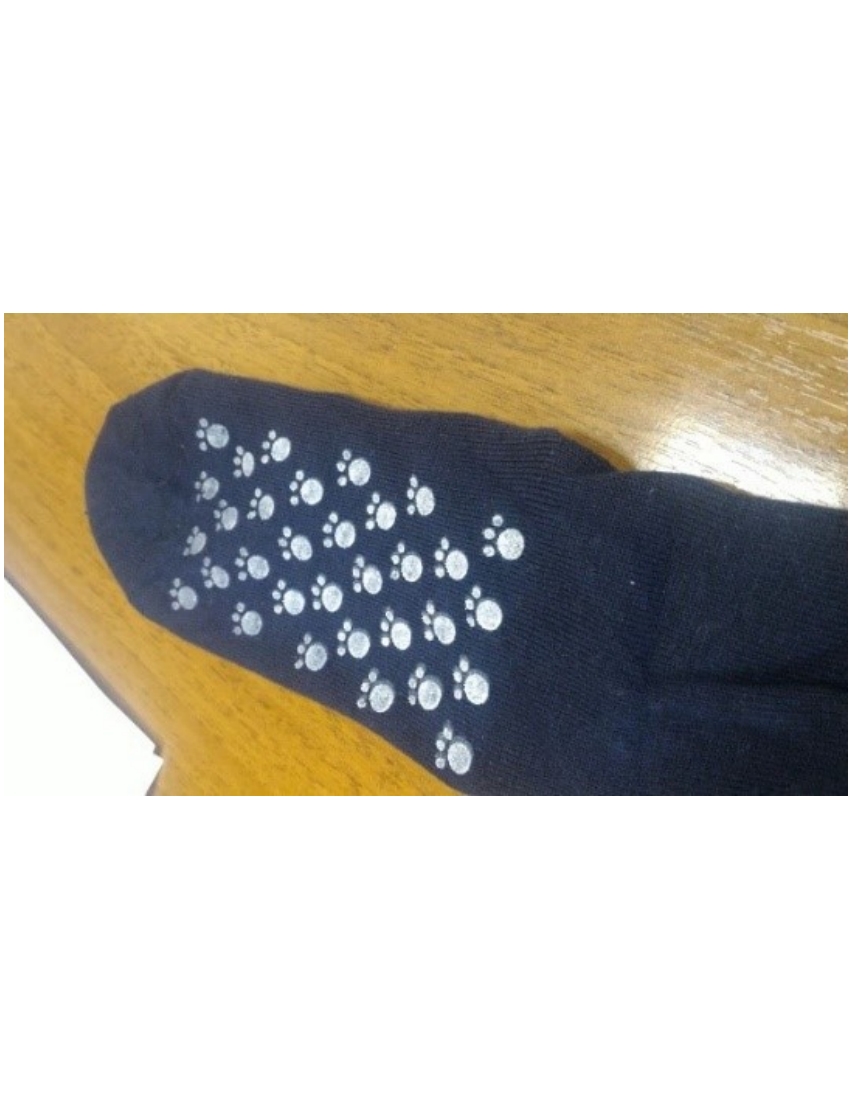

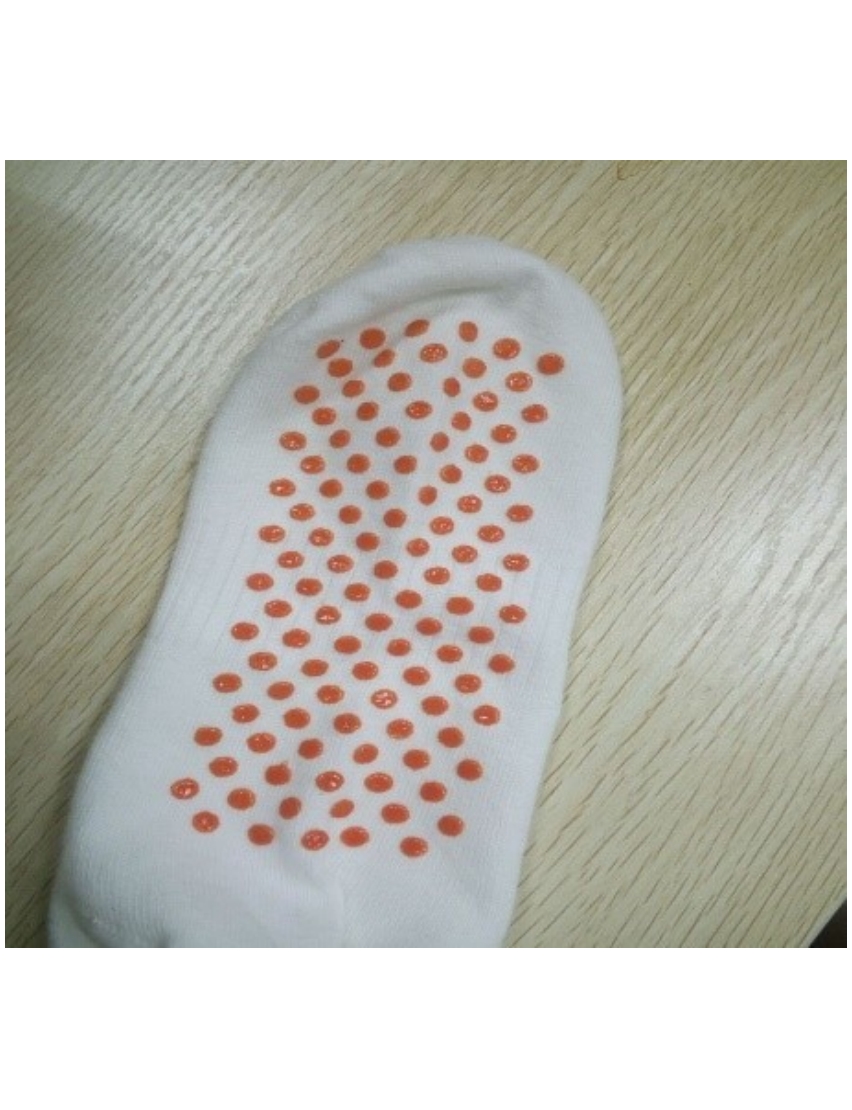

Suitable for printing clothes, socks

Very convenient for loading/unloading products,Profitable because of high quality and low price

Functions:

-Controlled PLC, User-friendly interface, clear display, easy According to the functionality in the work,

-2-color flat screen printing with infrared drying system suitable for different types of inkAnd has a small screen frame area for printing, suitable for products such as T-shirt collar socks

-8 stations,Controlled Stepper motor, to provide stable And smooth running, the angle and height of the scraper, can fix the screen of the stencil with the constant printing pressure of the second color

Parameters:

-Maximum printing area: 130*100mm

-Workstations: 5 pieces

-Drying system: 2 sets

-Power supply: 2.8 KV

-Weight: 90 kg

Printing speed: up to 2000 pcs/hour

Size: 1100*950*1500mm

Double color printing machine for PVC application, screen printing in the textile industry.

Speed can be up to 2000 pcs/hour.

Suitable for printing clothes, socks

Very convenient for loading/unloading products,Is profitable because of the high quality and low price

Functions:

-Controlled PLC, User-friendly interface, clear display, easy According to the functionality in the work,

-2-color flat screen printing with infrared drying system suitable for different types of inkAnd has a small screen frame area for printing, suitable for products such as T-shirt collar socks

-8 stations,Controlled Stepper motor, to provide stable And smooth running, the angle and height of the scraper, can fix the screen of the stencil with the constant printing pressure of the second color

Parameters:

-Maximum printing area: 130*100mm

-Workstations: 8 pieces

-Drying system: 3 sets

-Power supply: 4.0 KV

-Weight: 210 kg

Printing speed: 2000 pcs/hour

Size: 1320*1355*1480mm
